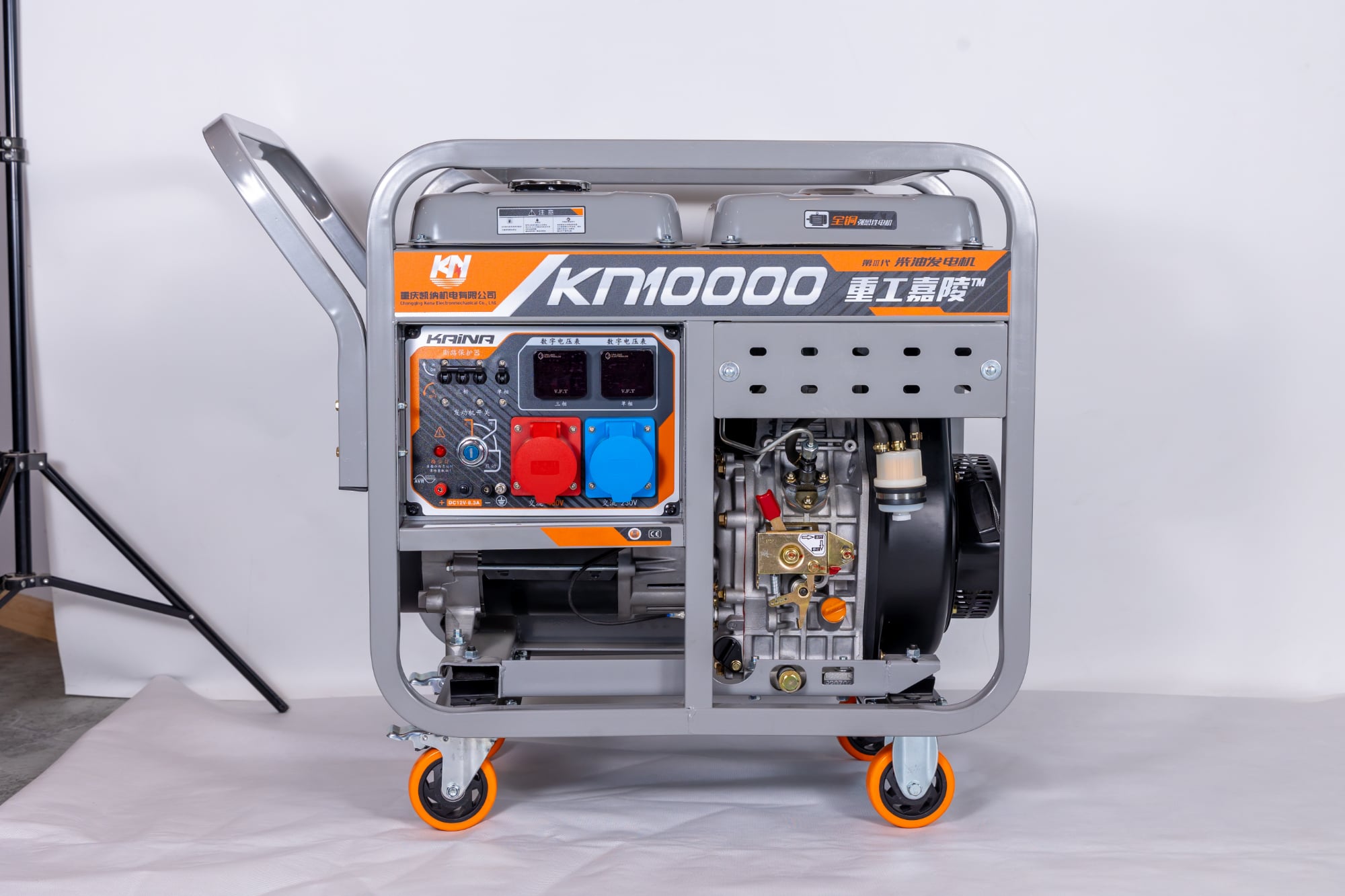

Place of Origin: |
Chongqing, China |
Brand Name: |
HUAN NENG |
Model Number: |
KN10000 |
Certification: |
CE, ISO 9001, ISO 14001 |
Minimum Order Quantity: |
1 Set |
Price: |
510USD |
Packaging Details: |
Carton packing for each set |
Delivery Time: |
10 days after payment |
Payment Terms: |
T/T 100% before shipping, negotiable for big order |
Supply Ability: |
20000 sets per month |
Description:
Intelligent All-copper Motor
Strong Power
Low Noise
Low Fuel Consumption
Easy to Operate
Safe and Reliable
Power Upgrade
Large Fuel Capacity
Intelligent Digital Display
All-copper Powerful Motor
Sufficient Power
High Temperature Resistance
20L Enlarged Fuel Tank
20L large fuel tank, can work continuously for 8 hours
Suitable for various complex environments
Intelligent LCD Digital Display
Voltage, frequency, and working time are all at a glance
Thickened Shock-absorbing Bottom Plate
Thickening the frame to truly achieve shock absorption, compression resistance and reinforcement
Four Configuration Panels: Single-phase, Three-phase, Equal-power, Dual-voltage
Specifications:
Model |
KN10000 |
|
Generator |
Rated Power |
8kW |
Max. Power |
9kW |
|
Rated Voltage |
220V/380V |
|
Rated Frequency |
50Hz |
|
Excitation Method |
AVR |
|
Insulation Grade |
F |
|
Engine |
Engine Type |
195FE |
Bore*Stroke |
95*75mm |
|
Displacement |
490cc |
|
Engine Fuel Consumption |
2.5L/h |
|
Lobe Oil Capacity |
1.7L |
|
Starting System |
Electric |
|
Ignition Method |
Compression Ignition |
|
Engine Type |
Vertical, Single Cylinder, 4-stroke, Air-cooled, Direct Injection |
|
Fuel Type |
Diesel:0#(Summer)-10#(Winter)-35#(Severe Cold) |
|
Ancillary Configuration |
Control Panel |
Digital Display |
Fuel Indicator |
Yes |
|
Lube Oil Protector |
Yes |
|
Caster Accessories |
Standard |
|
Fuel Capacity |
12.5L |
|
Other |
Noise |
80dBA/7m |
Continuous Running Time |
8h |
|
Dimensions |
710*610*460mm |
|
Package Size |
745*660*510mm |
|
Packing |
Carton |
|
N.W. |
120kg |
