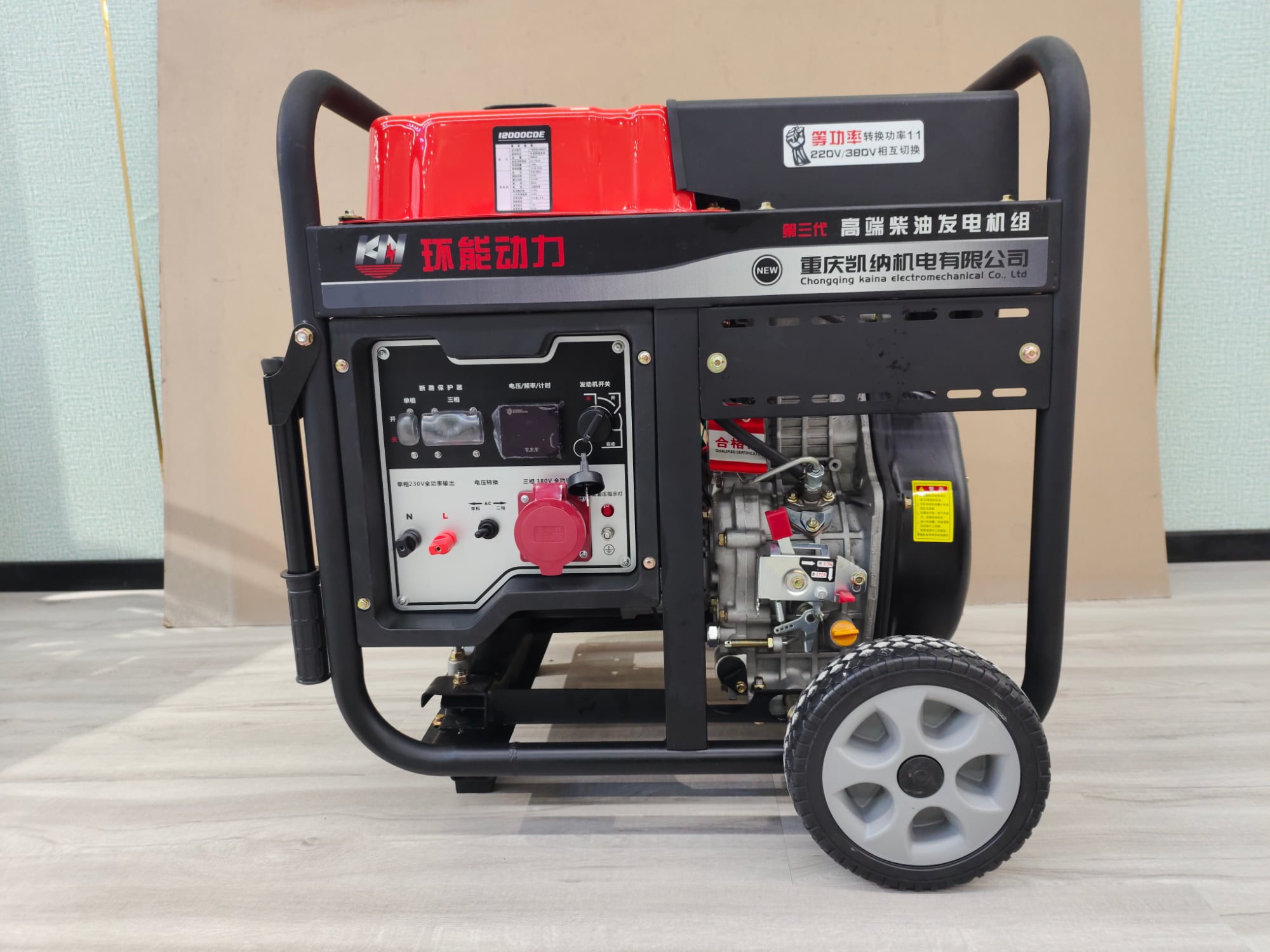

Portable Diesel Generator

Inquiry Contact

Is there a problem?
Please contact us to serve you!

+86-186 2323 2294

[email protected]

Inquiry

Description

Minimum Order Quantity:	1 Set
Price:	510USD
Packaging Details:	Carton packing for each set
Delivery Time:	10 days after payment
Payment Terms:	T/T 100% before shipping, negotiable for big order
Supply Ability:	20000 sets per month

Description：

Intelligent All-copper Motor

Strong Power

Low Noise

Low Fuel Consumption

Easy to Operate

Safe and Reliable

Power Upgrade

Large Fuel Capacity

Intelligent Digital Display

All-copper Powerful Motor

Sufficient Power

High Temperature Resistance

20L Enlarged Fuel Tank

20L large fuel tank, can work continuously for 8 hours

Suitable for various complex environments

Intelligent LCD Digital Display

Voltage, frequency, and working time are all at a glance

Thickened Shock-absorbing Bottom Plate

Thickening the frame to truly achieve shock absorption, compression resistance and reinforcement

Four Configuration Panels: Single-phase, Three-phase, Equal-power, Dual-voltage

Specifications：

Model		KN10000
Generator	Rated Power	7.5kW
	Max. Power	8kW
	Rated Voltage	220V
	Rated Frequency	50Hz
	Excitation Method	AVR
	Insulation Grade	F
Engine	Engine Type	192F
	Bore*Stroke	92*75mm
	Displacement	499cc
	Engine Fuel Consumption	2.3L/h
	Lobe Oil Capacity	1.7L
	Starting System	Electric
	Ignition Method	Compression Ignition
	Engine Type	Vertical, Single Cylinder, 4-stroke, Air-cooled, Direct Injection
	Fuel Type	Diesel：0#(Summer)-10#(Winter)-35#(Severe Cold)
Ancillary Configuration	Control Panel	Digital Display
	Fuel Indicator	Yes
	Lube Oil Protector	Yes
	Caster Accessories	Standard
	Fuel Capacity	20L
Other	Noise	80dBA/7m
	Continuous Running Time	8h
	Dimensions	710560765mm
	Package Size	770770725mm
	Packing	Carton
	N.W.	115kg
